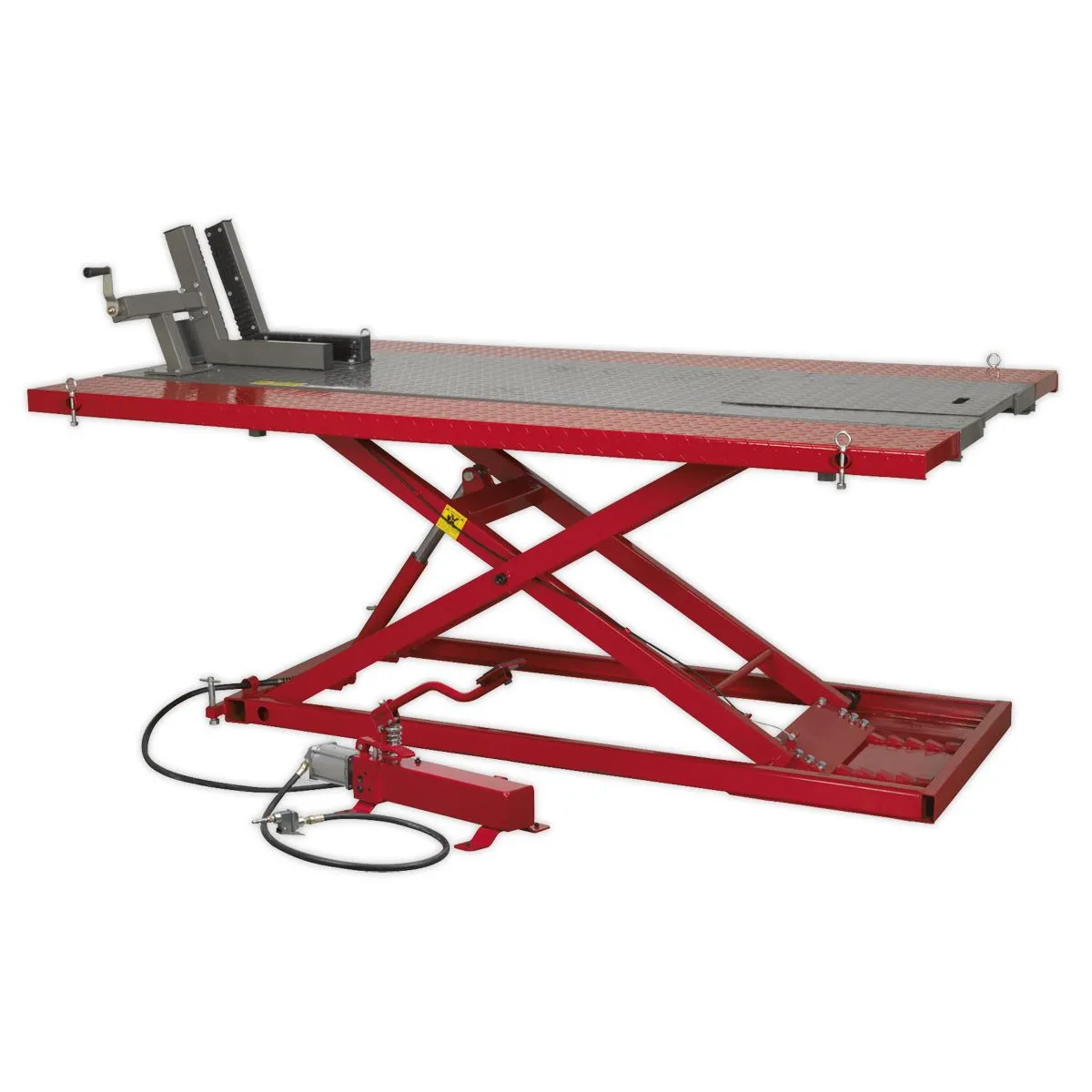

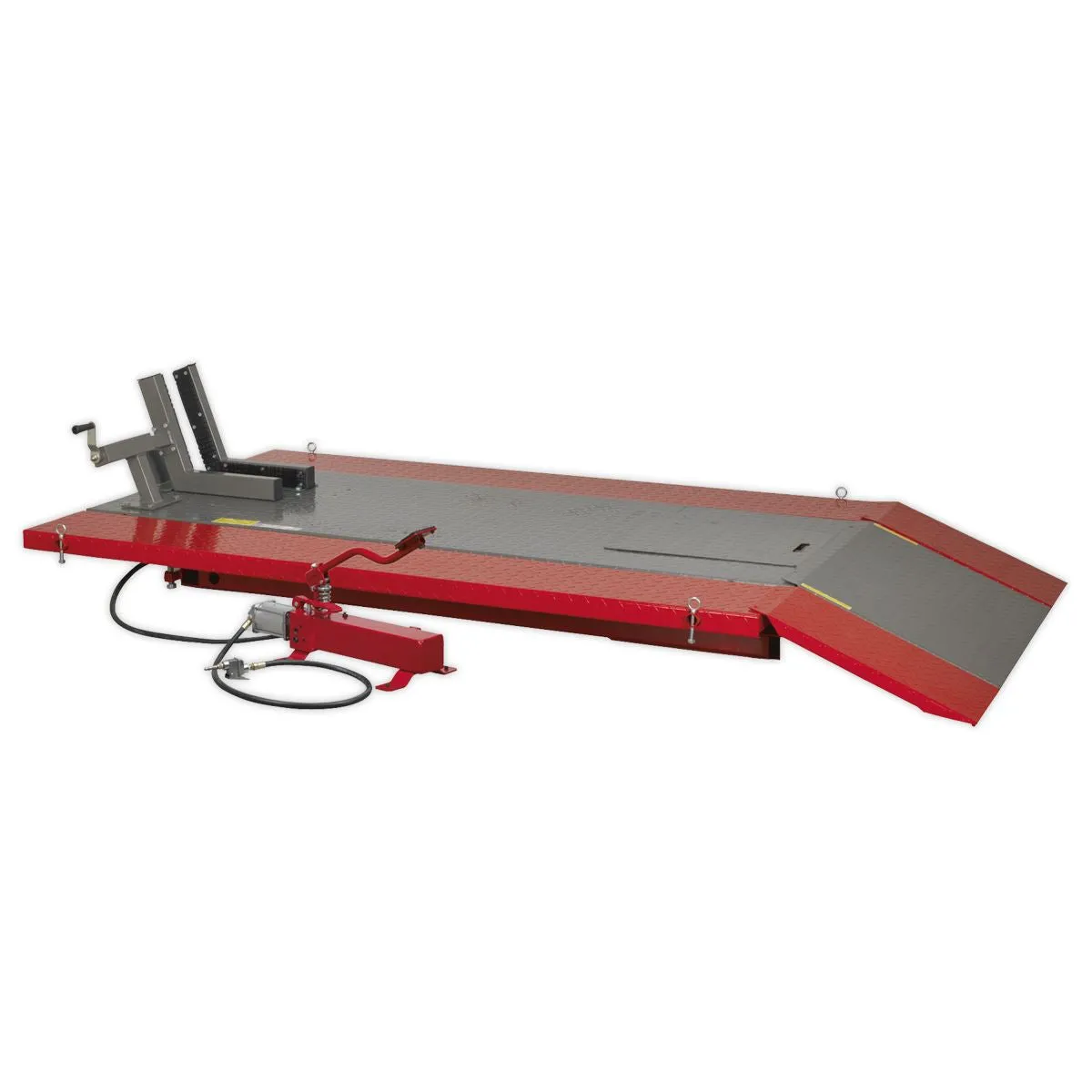

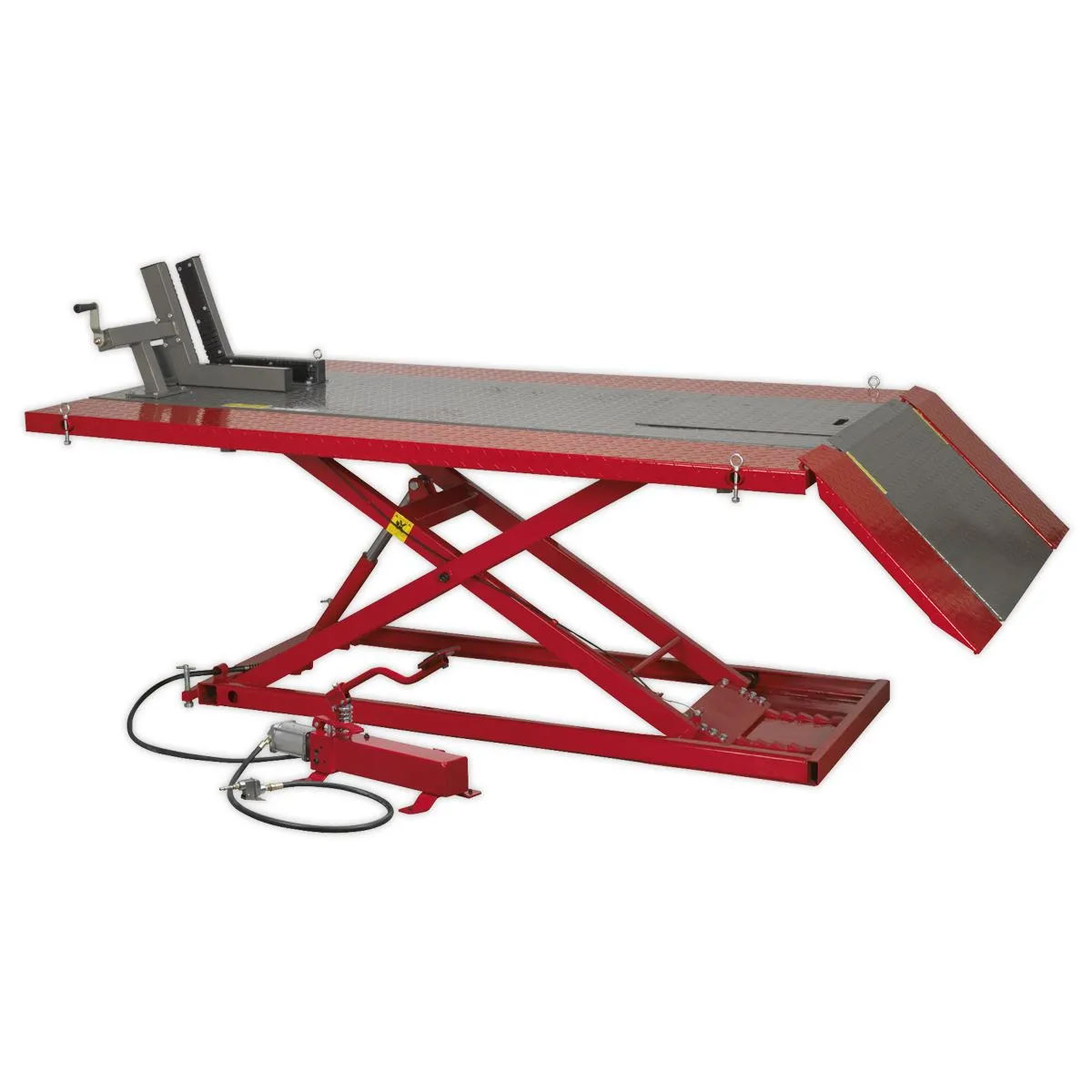

Sealey Air/Hydraulic Mini Tractor/Quad/Motorcycle Lift 680kg Capacity
Min./Max. Height: 190-790mm.
Width (Standard/Maximum): 710/1220mm.
Length: 2000mm.
All steel construction with heavy-duty hydraulic ram and air pump.
Supplied with separate, foot operated, hydraulic pump and reservoir unit.
Features two additional side platforms for extra width.
Ramp and platform made with chequer plate surface to ease loading and positioning of mini tractor/quad.
Supplied with motorcycle front wheel locking attachment, securing vehicle to provide easy maintenance access.
Fitted with multi-position safety lock to prevent accidental lowering.
Suitable for use with centre-stand motorcycles or with paddock stand.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No MT680
- Brand: Sealey
- Nett Weight: 225.34kg
- Capacity: 680kg
- Minimum/Maximum Height: 190-790mm
- Standard/Maximum Width: 710/1220mm
- Length: 2000mm
- Air Supply: Min. 100psi/Max. 120psi
Catalogue Page: Page 343
Downloadable Files:
- Instructions:
- Material Safety Data Sheet:
- Parts Diagram:
